QSFP112 400GBASE-DR4 Optical Module With PAM4 1310nm Wavelength For Data Transmission

MOQ: 1 pieces
Price: $974-1115 / piece
Standard Packaging: BOX
Payment Method: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin
Beijing, China
Brand Name
Hengzheng TC
Model Number
HZTF400DR4
Use:
Used For Quantum Switches And ConnectX-6 HCA
Connector Type:
QSFP112
Applications:
Infiniband QDR Interconnects
Encapsulation:
QSFP112
Maximum Transmission Rate:
425Gbps (4x106.25Gb/s)
Fiber Optic Type:
Single Mode
Interface:
MPO-12 (APC)
Maximum Transmission Distance:
500m
Launch Power:
-2.9~4.0dBm
Power Consumption:
10W
Highlight:

QSFP112 400gbase dr4

,

1310nm 400gbase dr4

,

Data Transmission sfp single

Product Description
Mellanox 400GBASE-DR4 QSFP112 NDR InfiniBand Single-mode Optical Module
Product Description
The Mellanox MMA1T00-HS compatible QSFP56 HDR InfiniBand optical transceiver is a 200Gb/s single-port QSFP56, SR4 multimode parallel transceiver, using a single 4-channel MPO-12/UPC optical connector. The parallel multimode, short distance 4-channel (SR4) operates with 50G-PAM4 modulation, and the maximum fiber transmission time is 100ms when using 4 multimode fibers. It is qualified for use in HDR InfiniBand end-to-end systems, for Quantum switches and ConnectX-6 HCA.
Key Features
  • Complies with InfiniBand NDR end-to-end system requirements
  • Built-in Macom chip, with a maximum power consumption of 10W
  • Support the connection of 800G to 2x400G links from switch to network card
  • Support 1/2 rate configuration for 200G (2x 100G)
  • Convert 4 sets of 106.25G PAM4 electrical signals into parallel transmission of 400GAUI-4 electrical signals
  • Complies with the hot-swappable QSFP112 standard
  • Complies with QSFP-112 MSA, CMIS Rev 5.0, IEEE 802.3ck standards and Class 1 laser safety
Encapsulation
QSFP112
Wavelength
1310nm
Joggle/interface
MPO-12 (APC)
Emitter type
EML
Transmit power
-2.9~4.0dBm
Power budget
3dB
Power consumption
10W
DDM/DOM
Support
Modulation (electrical port)
4x100G-PAM4
DSP
Transmitting and receiving
Core size
G.652/9um
Technical protocol
IEEE Std 802.3ck, QSFP112 MSA, CMIS 5.0
Maximum transmission rate
425Gbps (4x106.25Gb/s)
Maximum transmission distance
500m
Optical fiber type
Single mode
Receiver type
PIN
Minimum received power
-5.9dBm
Receiving overload
4.0dBm
Extinction ratio
>3.5dB
Commercial temperature range
0~70°C (32~158°F)

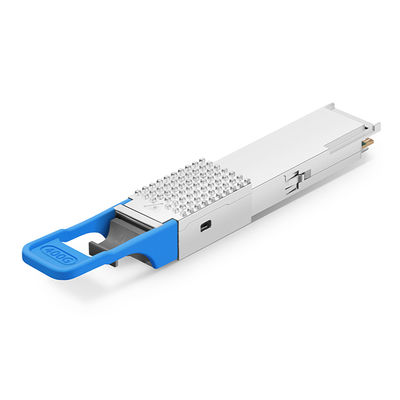

QSFP112 400GBASE-DR4 Optical Module With PAM4 1310nm Wavelength For Data Transmission 0
Packing & Delivery
QSFP112 400GBASE-DR4 Optical Module With PAM4 1310nm Wavelength For Data Transmission 1
FAQ

Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 10 days if the goods are not in stock, it is according to quantity.
Q: Can you offer a better price? Any discount?
A: Yes we can give you discount. But it is based on quantity. More quantity more attractive price.
Q: What is your warranty period?
A: 1. Different products have different warranties.
2. Comprehensive after-sales service, including quality service, guidance services. We focus on customer needs in every detail. Please contact us if you need our detail warranty term.
Q: What's the package?
A: Original packing. For the outside, we will pack it in an empty box to protect from damaged during transportation, and ensure you will receive the goods in good condition.
