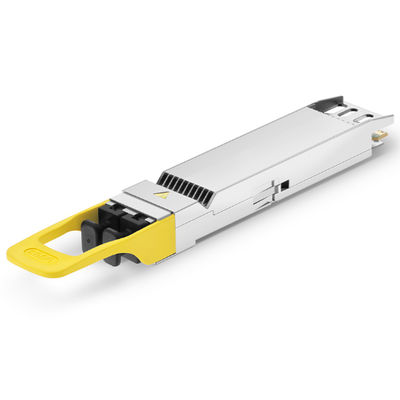

MMS4X00-NM Compatible 800GBASE 2X DR4 DR8 OSFP NDR InfiniBand Top Mounted Heatsink

MOQ: 1pieces
Price: $1,307 -1,500/ piece
Standard Packaging: box
Payment Method: L/C,D/A,D/P,T/T,Western Union,
Detail Information
Product Description
Detail Information
Place of Origin
Beijing, China
Brand Name
HengzhengTC
Model Number
HZTO8002DR4
Use:
Used For Quantum-2 Switch
Connector Type:
Dual-port OSFP
Applications:
Infiniband QDR Interconnects
Encapsulation:
Dual-port OSFP (top With Heatsink)
Maximum Transmission Rate:
850Gbps (8x 106.25Gbps)
Fiber Optic Type:
Single Mode
Interface:
Dual MTP/MPO-12 APC
Maximum Transmission Distance:
500m
Launch Power:
-2.9~4.0dBm
Power Consumption:
16.5W
Highlight:

DR4 mms4x00 nm

,

800GBASE mms4x00 nm

,

DR8 fiber optic equipment

Product Description
Mellanox MMS4X00-NM Compatible 800GBASE 2X DR4 DR8 OSFP NDR InfiniBand Top-mounted Heatsink Optical Fiber Optic Equipment
This Mellanox InfiniBand MMS4X00-NM compatible OSFP optical module is an InfiniBand 800Gb/s 2x400Gb/s dual-port OSFP, DR8 multimode parallel 8-channel optical module, using 2 optical fibers and 4-channel MPO-12/APC optical connectors, each supporting a data transmission rate of 400Gb/s. The parallel multimode short-range 8-channel (DR8) design employs 100G-PAM4 modulation, achieving a maximum transmission distance of 500m when using 8 multimode fibers. It is suitable for InfiniBand NDR end-to-end systems.
Key Features
  • Complies with InfiniBand NDR end-to-end system requirements
  • Built-in Broadcom 7nm DSP chip, with a maximum power consumption of 16.5W
  • The OSFP top features a heatsink for the Quantum-2 liquid cooling exchanger
  • Supports 800G to 800G links between switches or 800G to two 400G ConnectX-7 NIC connections
  • 8x 100G-PAM4 electrical signals converted to 2 channels of 4x 100G-PAM4 optical signals in parallel
  • After thorough testing with the real machine, it is fully compatible with NVIDIA (NVIDIA) QM9700/9790 devices
  • Complies with OSFP MSA, IEEE 802.3ck, RoHS standards, and Class 1 laser safety, supports digital diagnostic monitoring
Our Exhibition

MMS4X00-NM Compatible 800GBASE 2X DR4 DR8 OSFP NDR InfiniBand Top Mounted Heatsink 0

Packing & Delivery

MMS4X00-NM Compatible 800GBASE 2X DR4 DR8 OSFP NDR InfiniBand Top Mounted Heatsink 1

FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 10 days if the goods are not in stock, it is according to quantity.
Q: Can you offer a better price? Any discount?
A: Yes we can give you discount. But it is based on quantity. More quantity more attractive price.
Q: What is your warranty period?
A: 1. Different products have different warranties.
2. Comprehensive after-sales service, including quality service, guidance services, We focus on customer needs in every detail. Please contact us if you need our detail warranty term.
Q: What's the package?
A: Original packing. For the outside, we will pack it in an empty box to protect from damaged during transportation, and ensure you will receive the goods in good condition.
