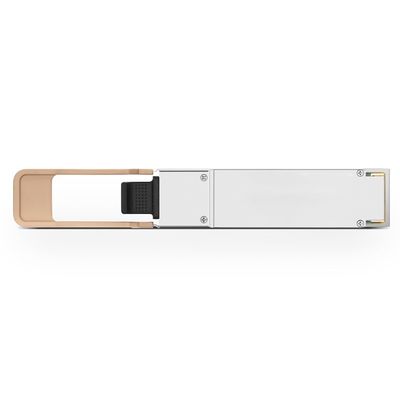

Mellanox MMA1Z00-NS400 400GBASE-SR4 QSFP112 NDR InfiniBand Optical Module With PAM4 850nm

MOQ: 1pieces
Price: $974 -1100/ piece
Standard Packaging: box
Payment Method: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin
Beijing, China
Brand Name
HengzhengTC
Model Number
HZTF400SR4
Use:
Used For ConnectX-7 HCA
Connector Type:
QSFP112
Applications:
Infiniband QDR Interconnects
Encapsulation:
QSFP112
Maximum Transmission Rate:
425Gbps (4x106.25Gb/s)
Fiber Optic Type:
Multi-modal
Interface:
MPO-12 (APC)
Maximum Transmission Distance:
30m@OM3/50m@OM4
Launch Power:
-4.6~4dBm
Power Consumption:
9W
Highlight:

400GBASE-SR4 infiniband module

,

QSFP112 infiniband module

,

850nm mma1z00 ns400

Product Description
Mellanox MMA1Z00-NS400 400GBASE-SR4 QSFP112 NDR InfiniBand Multimode Optical Module
Product Description

This Mellanox MMA1Z00-NS400 compatible QSFP112 NDR InfiniBand optical module is a 400Gb/s single-port QSFP112, SR4 single-mode parallel optical module, using a single 4-channel MPO-12/APC optical connector. The short-range 4-channel (SR4) design employs 100G-PAM4 modulation to achieve a transmission distance of up to 50m over OM4 multimode fiber. This optical module is used to connect ConnectX-7/QSFP112 network cards and dual-port optical modules of 2x400G IB switches.

Key Features
  • Complies with InfiniBand NDR end-to-end system requirements
  • Built-in Broadcom 7nm chip with a maximum power consumption of 10W
  • Support the connection of 800G to 2x400G links from switch to network card
  • Support 1/2 rate configuration for 2x 200G
  • Convert 4 sets of 106.25G PAM4 electrical signals into parallel transmission of 400GAUI-4 electrical signals
  • Complies with the hot-swappable QSFP112 standard
  • Complies with QSFP-112 MSA, CMIS Rev 5.0, IEEE 802.3ck standards and Class 1 laser safety
  • Through rigorous testing, ensure full compatibility with NVIDIA ConnectX-7 network cards
Encapsulation
QSFP112
Wavelength
850nm
Interface
MPO-12 (APC)
Emitter type
VCSEL
Transmit power
-4.6~4dBm
Power budget
1.8dB
Power consumption
9W
DDM/DOM
support
Modulation (electrical port)
4x100G-PAM4
DSP
Transmitting and receiving
Core size
50μm
Technical protocol
IEEE Std 802.3db, QSFP112 MSA, CMIS 4.0
Maximum transmission rate
425Gbps (4x106.25Gb/s)
Maximum transmission distance
30m@OM3/50m@OM4
Optical fiber type
Multimode
Receiver type
PIN
Minimum received power
-6.4dBm
Receiving overload
4.0dBm
Extinction ratio
>2.5dB
Commercial temperature range
0~70°C (32~158°F)
Packing & Delivery
Mellanox MMA1Z00-NS400 400GBASE-SR4 QSFP112 NDR InfiniBand Optical Module With PAM4 850nm 0
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 10 days if the goods are not in stock, it is according to quantity.
Q: Can you offer a better price? Any discount?
A: Yes we can give you discount. But it is based on quantity. More quantity more attractive price.
Q: What is your warranty period?
A: 1. Different products have different warranties.
2. Comprehensive after-sales service, including quality service, guidance services. We focus on customer needs in every detail. Please contact us if you need our detail warranty term.
Q: What's the package?
A: Original packing. For the outside, we will pack it in an empty box to protect from damaged during transportation, and ensure you will receive the goods in good condition.
