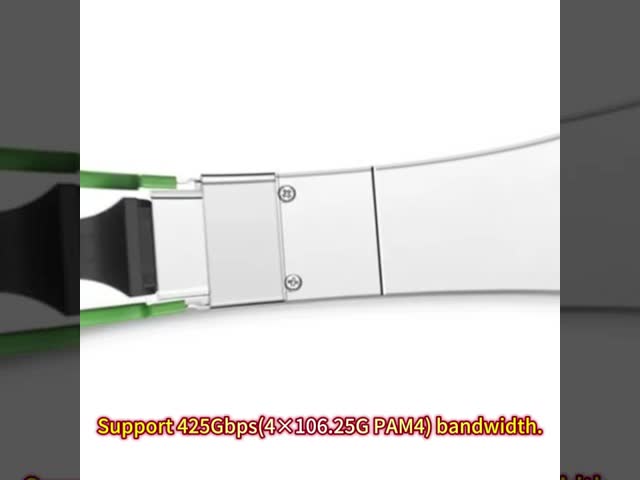

400GBASE-XDR4 QSFP112 NDR InfiniBand Single Mode Sfp PAM4 1310nm 2km DOM MPO-12 APC

MOQ: 1 pieces
Price: $1,544 -1600/ piece
Standard Packaging: box
Payment Method: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin
Beijing, China
Brand Name
HengzhengTC
Model Number
HZTF400XDR4
Use:
Used For ConnectX-7 HCA
Connector Type:
QSFP112
Applications:
Infiniband QDR Interconnects
Encapsulation:
QSFP112
Maximum Transmission Rate:
425Gbps (4x106.25Gb/s)
Fiber Optic Type:
Single Mode
Interface:
MPO-12/APC
Maximum Transmission Distance:
2km
Launch Power:
-2.4~4dBm
Power Consumption:
10W
Highlight:

400GBASE-XDR4 single mode sfp

,

QSFP112 single mode sfp

,

1310nm sfp mode

Product Description
Mellanox 400GBASE-XDR4 QSFP112 NDR InfiniBand Single-mode Optical Module
Product Description

The Mellanox compatible QSFP112 NDR InfiniBand optical module is a 400Gb/s single-port QSFP112, xR4 single-mode parallel optical module, utilizing a single 4-channel MPO-12/APC optical connector. This short-range 4-channel (XDR4) design employs 100G-PAM4 modulation to achieve a transmission distance of up to 2 km on OS2 single-mode fiber. The optical module is used to connect ConnectX-7/QSFP112 network cards and dual-port optical modules for 2x400G IB switches.

Key Features
  • Complies with InfiniBand NDR end-to-end system requirements
  • Built-in Marvell 6nm DSP chip, with a maximum power consumption of 10W
  • Low Bit Error Rate (BER) of InfiniBand NDR system
  • Support the connection of 800G to 2x400G links from switch to network card
  • 4x106.25G PAM4 retimed 400GAUI-4 electrical interface
  • Hot-pluggable QSFP112 packaging format
  • Complies with QSFP-112 MSA, CMIS Rev 4.0, IEEE 802.3cu standards and Class 1 laser safety
Encapsulation
QSFP112
Wavelength
1310nm
Interface
MPO-12/APC
Emitter type
EML
Transmit power
-2.4~4dBm
Power budget
4dB
Power consumption
10W
Modulation (electrical port)
4x100G-PAM4
DDM/DOM (Digital Diagnosis)
support
DSP
Transmitting and receiving
Core size
9μm
Technical protocol
IEEE 802.3bs, OIF-CEI-112G-VSR-PAM4, CMIS Rev 5.2, QSFP-112 MSA
Maximum transmission rate
425Gbps (4x106.25Gb/s)
Maximum transmission distance
2KM
Optical fiber type
Single mode
Receiver type
PIN
Minimum received power
-4.5dBm
Receiving overload
5.5dBm
Extinction ratio
>3.5dB
Modulation (optical port)
4x100G-PAM4
400GBASE-XDR4 QSFP112 NDR InfiniBand Single Mode Sfp PAM4 1310nm 2km DOM MPO-12 APC 0
Packing & Delivery
400GBASE-XDR4 QSFP112 NDR InfiniBand Single Mode Sfp PAM4 1310nm 2km DOM MPO-12 APC 1
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 10 days if the goods are not in stock, it is according to quantity.
Q: Can you offer a better price? Any discount?
A: Yes we can give you discount. But it is based on quantity. More quantity more attractive price.
Q: What is your warranty period?
A: 1. Different products have different warranties.
2. Comprehensive after-sales service, including quality service, guidance services, We focus on customer needs in every detail. Please contact us if you need our detail warranty term.
Q: What's the package?
A: Original packing. For the outside, we will pack it in an empty box to protect from damaged during transportation, and ensure you will receive the goods in good condition.
Tags:

SFP+ transceiver,

optical transceiver,

optical transceivers
