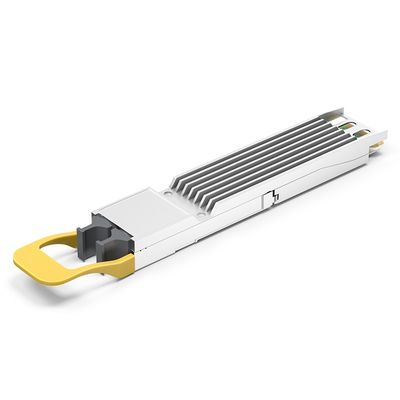

MMS4X00-NS Mellanox Compatible 800Gbps OSFP Optical Module With 500m Transmission Distance

MOQ: 1 pieces
Price: $974 -1150/ piece
Standard Packaging: BOX
Payment Method: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin
Beijing, China
Brand Name
HengzhengTC
Model Number
HZTO8002DR4L
Use:
Used For Quantum-2 Switch
Connector Type:
Dual-port OSFP
Applications:
Infiniband QDR Interconnects
Encapsulation:
Dual-port OSFP (top With Heatsink)
Maximum Transmission Rate:
850Gbps (8x 106.25Gbps)
Fiber Optic Type:
Single Mode
Interface:
Dual MTP/MPO-12 APC
Maximum Transmission Distance:
500m
Launch Power:
-2.9~4.0dBm
Power Consumption:
17W
Highlight:

500m mms4x00 ns Mellanox

,

800Gbps mms4x00 ns

,

OSFP optical module

Product Description
Mellanox MMS4X00-NS Compatible 800GBASE 2 X DR4 DR8 OSFP NDR InfiniBand Top with Heatsink Single-mode Optical Module
Product Description

The Mellanox InfiniBand MMS4X00-NS compatible OSFP optical module is an InfiniBand 800Gb/s dual-port OSFP with 2x400Gb/s, a DR8L multimode parallel 8-channel optical module. It uses 2 optical fibers and a 4-channel MPO-12/APC optical connector, each supporting a data transmission rate of 400Gb/s. The parallel multimode short-distance 8-channel (DR8L) design employs 100G-PAM4 modulation scheme, with a maximum transmission distance of 100m when using 8 multimode fibers. Suitable for InfiniBand NDR end-to-end systems.

Key Features
  • Complies with InfiniBand NDR end-to-end system requirements
  • Maximum power consumption of 17W
  • OSFP top features heatsink for Quantum-2 liquid cooling switch
  • Supports 800G to 800G links between switches or 800G to two 400G ConnectX-7 network card connections
  • 8x 100G-PAM4 electrical signals converted to 2 parallel 4x 100G-PAM4 optical signals
  • Fully compatible with NVIDIA QM9700/9790 devices through real machine testing
  • Complies with OSFP MSA, IEEE 802.3ck, RoHS standards, and Class 1 laser safety with digital diagnostic monitoring
encapsulation
Dual-port OSFP (top with heat sink)
wavelength
1310nm
joggle/interface
Double MTP/MPO-12 APC
Emitter type
EML
Transmit power
-2.9~4.0dBm
power budget
3dB
power consumption
17W
Modulation (electrical port)
8x100G-PAM4
Packaging technology
COB (chip on board) package
CDR
The transmitter and receiver have built-in DSP.
technical protocol
IEEE 802.3cu-2021, IEEE P802.3ck D2.2
Maximum transmission rate
850Gbps (8x 106.25Gbps)
Maximum transmission distance
500m
Optical fiber type
single mode
Receiver type
PIN
Minimum received power
-5.9dBm
Receiving overload
5dBm
extinction ratio
>3.5dB
Modulation (optical port)
Dual 4x100G-PAM4
Modulation format
PAM4
MMS4X00-NS Mellanox Compatible 800Gbps OSFP Optical Module With 500m Transmission Distance 0
Packing & Delivery
MMS4X00-NS Mellanox Compatible 800Gbps OSFP Optical Module With 500m Transmission Distance 1
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. Or it is 10 days if the goods are not in stock, depending on quantity.
Q: Can you offer a better price? Any discount?
A: Yes we can give you discount. But it is based on quantity. More quantity means more attractive price.
Q: What is your warranty period?
A: 1. Different products have different warranties.
2. Comprehensive after-sales service, including quality service and guidance services. We focus on customer needs in every detail. Please contact us for specific warranty terms.
Q: What's the package?
A: Original packing. For the outside, we will pack it in an empty box to protect from damage during transportation, ensuring you receive the goods in good condition.
