Broadcom 9620-16i 12G SAS RAID Card U.2 NVMe SAS/SATA

MOQ:	1 pieces
Price:	$1687-2100 / piece
Standard Packaging:	box
Payment Method:	D/A,L/C,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin

Beijing, China

Brand Name

Broadcom

Model Number

9620-16i

Transmission Rate:

10/100/1000Mbps

Interface Type:

Host Bus Type:

PCIe X8 Gen4.0

I/O Processor/SAS Controller::

SAS4016

Data Transfer Rates::

22.5,12 And 6Gb's SAS And 6Gb/s SATA

Physical Dimensions:

6.127"x 2.712

Operating Temperature"C:

0'C To 55°C

Warranty:

3 Years

Highlight:

Broadcom 9620-16i RAID card

12G SAS RAID controller

U.2 NVMe hybrid RAID

Product Description

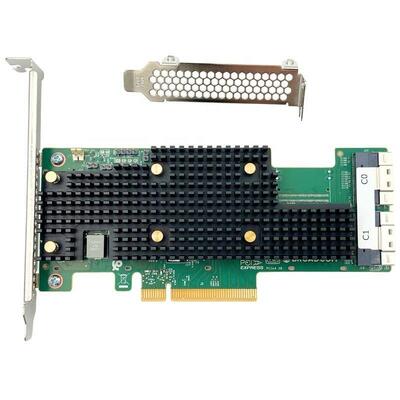

Broadcom 9620-16i 12G SAS RAID Card U.2 NVMe SAS/SATA

Broadcom 9620-16i 12G SAS RAID Card U.2 NVMe SAS/SATA 0

Broadcom 9620-16i 12G SAS RAID Card U.2 NVMe SAS/SATA 1

Broadcom 9620-16i 12G SAS RAID Card U.2 NVMe SAS/SATA 2

The 9620-16i Tri-Mode, PCIe Gen 4.0 enhanced HBA (eHBA) is ideal for increased connectivity and maximum performance for enterprise data center flexibility.

With increased bandwidth and IOPS performance compared to previous generations, the 9620-16i eHBA delivers the performance and scalability needed by critical applications.

· Low profile, half-length x8 PCIe Gen 4.0 adapter

· Connects up to 32 SAS/SATA devices or 32 NVMe devices

· RAID 0/1/10 with hot spare support

· Hardware Secure Boot and SPDM Attestation support

· SMART monitoring

· Driver temperature monitoring

· SafeStore key management for attached SEDs

· SFF-TA-1005 Universal Bay Management (UBM) Ready

Specification	Details
Model	9620-16i
Brackets	Full height and low profile
Data Transfer Rates	22.5,12 and 6Gb's SAS and 6Gb/s SATA
Generation	24 Gb
Host Bus Type	PCIe x8 Gen4.0
Internal Connectors	2 x8 SFF-8654 (SlimSAS)
Internal Ports	16
I/O Controller	SAS4016
Management Software	LSl Storage Authority (LSA), StorCL! (Command-Line Interface), Hll (UEFl Human Interface Infrastructure)
MTBF	>5,000,000 hours at 40°C
Operating Humidity	5% to 90% Non-condensing
Operating Temperature	0°C to 55°C
OS Support	Microsolt Windows, VMware vSphere, VMware vSpherelESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubunlu Linux,CentOS Linux, Debian Linux, Oracle Enterprise Linux, FreeBSD
Physical Dimensions	6.127"x 2.712
Typical Power	17W

Broadcom 9620-16i 12G SAS RAID Card U.2 NVMe SAS/SATA 3

Broadcom 9620-16i 12G SAS RAID Card U.2 NVMe SAS/SATA 4

Broadcom 9620-16i 12G SAS RAID Card U.2 NVMe SAS/SATA 5

A national high-tech company featuring R&D, designing, production,marketing and service, Beijing HengzhengTc Sci-Tech co. Ltd.
providesprofessional solutions for high-speed Internet access products and smarttelecommunications products. lt's products include PCle and Ocp servernetwork adapter, optical module, DAC/AOC/ACC/AEC and MTP/MPT opti-cal fiber patch cord, and can be produced on demand.

Its1G/10G/25G/40G/50G/100G/200G/400G/800G Ethernet product seriesand EDR, HDR, NDR and XDR InfiniBand product series can be used inequipment of all mainstream brands, and can be applied in cloud servic-es, high-caliber computing, enterprises, telecommunications, storage, Aland data centers. Beijing HengzhengTc Sci-Tech Co. Ltd. provides a36-month warranty for all its products.

We also provide parts of world-famous brand Al servers, including GPU,DPU, RAlD controller, network adapter, ssD, among others. Guided byour clients'demands, we also provide solutions for Brocade FC SAN,Nvidia InfiniBand and high-speed Ethernet.
With 16 years of experience in the industry and five years of export histo-ry, we value the client-centered principle and sincerely serve every do-mestic and international client.

Broadcom 9620-16i 12G SAS RAID Card U.2 NVMe SAS/SATA 6

Broadcom 9620-16i 12G SAS RAID Card U.2 NVMe SAS/SATA 7

Broadcom 9620-16i 12G SAS RAID Card U.2 NVMe SAS/SATA 8

Broadcom 9620-16i 12G SAS RAID Card U.2 NVMe SAS/SATA 9

Broadcom 9620-16i 12G SAS RAID Card U.2 NVMe SAS/SATA 10

Broadcom 9620-16i 12G SAS RAID Card U.2 NVMe SAS/SATA 11

Broadcom 9620-16i 12G SAS RAID Card U.2 NVMe SAS/SATA 12

1.Why choose us?

Rich experience: The team members of the company have over ten years of experience in the field of AI server
accessories and FC SAN/InfiniBand/high-speed Ethernet solutions. They have accumulated rich industry practical experience and can precisely match the optimal solutions for different customers and different scenarios. Stable product supply chain: We have been cooperating with leading manufacturers for many years, with sufficient supply and controllable delivery cycles. Many products are available in stock and can be provided by the company. Comprehensive services: We provide a full process of services from product selection, solution design to after-sales service. The technical team of the company responds as promptly as possible 24/7 every day of the week. High cost-effectiveness: Relying on the company's bulk purchasing advantage, while ensuring the quality of original products from each manufacturer, we can provide customers with more competitive prices as much as possible.
2. Is the product brand new?
All products of our company are 100% original and brand new genuine items. For products under the agency brand, original factory warranty certificates can be provided. Our independently developed products have all passed strict factory inspections and their quality is consistent with the brand new standard. Official verification is supported.
3. How long after payment will the goods be dispatched?
Spot Order: After the payment confirmation is received and credited, the goods will be dispatched within 1-3 days. Urgent orders can be given priority. Non-spot / Customized Order: The delivery period is determined based on the product inventory or customization progress. The exact time will be notified by the customer service. Special Note: The delivery time will be postponed during holidays. You can consult the customer service before placing the order to confirm the status.
4. Is customization acceptable? What is the minimum order quantity?
Customization scope: The company offers customized services for its own developed network cards, optical modules, and high-speed cables. Minimum order quantity requirement: The minimum order quantity for the basic customization plan is 50 pieces. For complex specifications (such as special environment adaptation, non-standard interfaces), the minimum order quantity must be ≥ 200 pieces.
For details, please contact the customer service for negotiation. Agency and distribution products: Only the original factory standard models are provided, and customization modifications are not supported.
5. Which payment methods and currencies are acceptable?
Supports corporate account transfers for enterprises. Payments can be made through methods such as bank counter services or online banking wire transfers. After the order is generated, complete corporate account information (such as the bank name, bank account number, and account name, etc.) will be provided. When making the payment, the order number must be noted to ensure the accuracy of the payment verification. Accepts both RMB and US dollars.
