50 / 125um OM2 Multimode Fiber Jumper With LC UPC Connector 3M Length
  • name
  • name
  • name
  • name
  • name

50 / 125um OM2 Multimode Fiber Jumper With LC UPC Connector 3M Length

MOQ: 1 bag
Price: $3-27 / bag
Standard Packaging: box
Detail Information
Product Description
Detail Information
Place of Origin
Beijing, China
Brand Name
HengzhengTC
Model Number
HZ-LC-LC-DX-3M2
Length:
3M
Connector Type:
LC/UPC-LC/UPC
Operating Temperature:
-20~70°C(-4~158℉)
Usage:
1000BASE-SX, SFP Optical Transceivers
Fiber Type:
OM2 50/125μm
Warranty:
3 Years
Highlight:

OM2 multimode fiber jumper

,

125um multimode fiber jumper

,

3M fiber optic patch cord multimode

Product Description
High Quality and High Cost Performance 50/125μm OM2 Multimode Fiber Jumper

Compared to traditional fiber patch cords, our 50/125μm OM2 multimode fiber patch cords offer superior performance with reduced attenuation when bent or twisted, enabling more efficient installation and maintenance. These patch cords provide high-density cabling solutions for data centers, enterprise networks, telecom rooms, servers, and cloud storage networks. They are designed to connect pre-terminated cassette distribution modules in main distribution, horizontal distribution, and equipment distribution areas.

Ideal for connecting 1000BASE-SX, SFP transceivers, and other Gigabit Ethernet and Fibre Channel applications.

Product Specifications
Model HZ-LC-LC-DX-3M2
Number of fiber cores Dual-core
Fiber Rating G.651
Wavelength 850/1300nm
Polarity A (Transmitter)-B (Receiver)
Outer sheath of the cable Riser(OFNR)
Minimum bending radius (core) 7.5mm
Insertion loss ≤0.3dB
Cable Outer Diameter (OD) 2.0mm

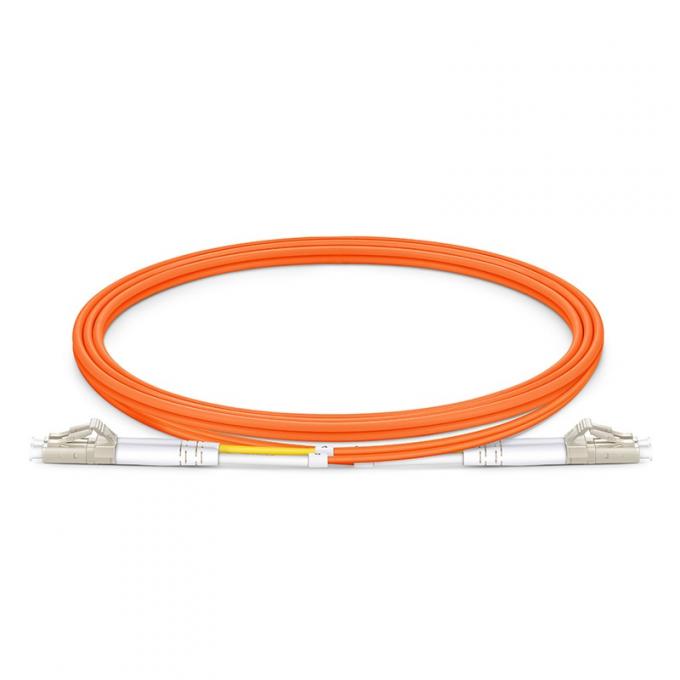

Close-up view of 50/125μm OM2 Multimode Fiber Jumper connectors
Ordering Information
Model Product Description
HZ-LC-LC-DX-3M2 LC Twin Core Jumper (OM2), LC/UPC-LC/UPC-MM (OM2)-DX-2.0mm-3M
HZ-LC-LC-DX-5M2 LC Twin Core Jumper (OM2), LC/UPC-LC/UPC-MM (OM2)-DX-2.0mm-5M
HZ-LC-LC-DX-10M2 LC Twin Core Jumper (OM2), LC/UPC-LC/UPC-MM (OM2)-DX-2.0mm-10M
HZ-LC-LC-DX-15M2 LC Twin Core Jumper (OM2), LC/UPC-LC/UPC-MM (OM2)-DX-2.0mm-15M
HZ-LC-LC-DX-20M2 LC Twin Core Jumper (OM2), LC/UPC-LC/UPC-MM (OM2)-DX-2.0mm-20M
HZ-LC-LC-DX-xxM2 LC Twin Core Jumper (OM2), LC/UPC-LC/UPC-MM (OM2)-DX-2.0mm-xxM
Frequently Asked Questions
Are you trading company or manufacturer?
We are manufacturer.
How long is your delivery time?
Generally it is 2-5 days if the goods are in stock. For out-of-stock items, delivery time is approximately 10 days depending on quantity.
Can you offer a better price? Any discount?
Yes, we offer quantity-based discounts. Larger orders receive more attractive pricing.
What is your warranty period?

1. Different products have different warranties.

2. We provide comprehensive after-sales service including quality assurance and technical guidance. Please contact us for specific warranty terms.

What's the package?
Original packing with additional protective outer packaging to ensure safe delivery.
