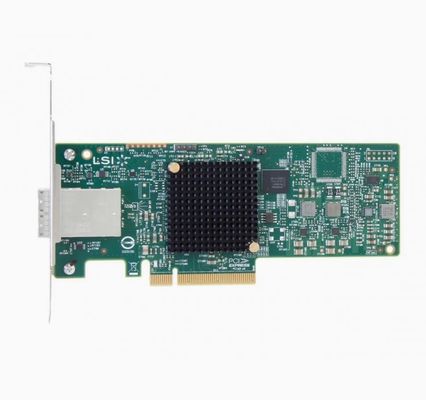

Broadcom 9300-8E 12Gb/s Dual Port PCIe 3.0 RAID Card

MOQ: 5piece
Price: US $ 540 / piece
Payment Method: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin
American
Brand Name
Broadcom
Model Number
9300-8E
Host Bus Type:
X8 Lane PCI Express 3.0
I/O Controller:
LSI SAS 3008
PCI Power:
14.5W
Working Voltage:
+12V+/-8%，3.3V+/-9%
Warranty:
3 Years
Operating Temperature:
0°C-55°C
Highlight:

Broadcom 9300-8E RAID card

,

12Gb/s PCIe 3.0 RAID card

,

dual port RAID card

Product Description
Broadcom 9300-8E 12Gb/s Dual Port PCIe 3.0 RAID Card
High-performance 12Gb/s SAS RAID controller card with dual external ports, designed for enterprise storage solutions requiring reliable data protection and high-speed connectivity.
Key Features
  • High-performance connectivity: 12Gb/s SAS-3 interface with backward compatibility
  • Enterprise RAID support: Comprehensive RAID levels including 0/1/5/6/10/50/60
  • Scalable storage: Supports up to 1024 devices with external JBOD expansion capability
  • Reliable data protection: Optional cache with CacheVault support for power loss protection
  • Flexible management: LSI Storage Authority GUI and StorCLI command-line tool
Technical Specifications
Physical Dimensions Low-profile specification: 2.6 inches (height) × 6.0 inches (length), compatible with 4U/2U chassis
Host Bus Type PCIe 3.0 x8 lane, compatible with x16 slot
I/O Processor LSI SAS 3008 controller, supporting Fusion-MPT 2.5 architecture
RAID Function Supports RAID 0/1/5/6/10/50/60, hardware acceleration required for configuration
Device Support Up to 1024 non-RAID SAS/SATA devices, 8 external SAS channels
Data Transfer Rate 12Gb/s SAS-3 (per channel), compatible with 3Gb/s and 6Gb/s
Cache Options Optional 1GB/2GB DDR3 cache (version confirmation required), supports CacheVault
Interface Type 2 Mini-SAS HD SFF-8644 external interfaces, supporting active/passive cables
Compatibility & Environment
Operating Systems Windows/Linux/VMware/FreeBSD/Solaris
Certifications FCC/CE/RoHS
Operating Temperature 0°C - 55°C
Humidity 5% - 90% non-condensing
Power Consumption 14.5W max, 6.12W typical (low load)
Reliability MTBF > 2.8 million hours, lifecycle status is Active
Note: Cache memory configuration may vary by specific model. Please verify exact specifications before purchase.
