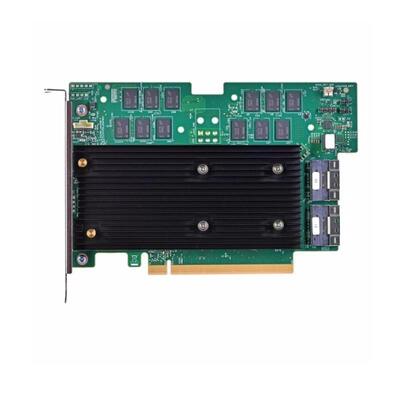

Broadcom 9670-24i 24G PCIe 4.0 Tri-Mode RAID Adapters and eHBAs
  • name
  • name
  • name
  • name

Broadcom 9670-24i 24G PCIe 4.0 Tri-Mode RAID Adapters and eHBAs

MOQ: 1 pieces
Price: $2650-3500 / piece
Standard Packaging: box
Payment Method: D/A,L/C,D/P,T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin
Beijing, China
Brand Name
Broadcom
Model Number
9670-24i
Transmission Rate:
10/100/1000Mbps
Interface Type:
PCIe
Host Bus Type:
PCIe X8 Gen4.0
I/O Processor/SAS Controller::
SAS4124 ROC
Device Support::
SAS/SATA: 240,NVMe: 32
Generation:
24G
Physical Dimensions:
155.65mm X 111.15mm
Warranty:
3 Years
Highlight:

Broadcom 9670-24i RAID adapter

,

24G PCIe 4.0 RAID controller

,

Tri-Mode eHBA with warranty

Product Description
Broadcom  9670-24i  24G PCIe 4.0 Tri-Mode RAID Adapters and eHBAs

The MegaRAID 9670-24i adapter, based on the SAS4124 RAID-on-Chip (RoC), integrates a 2x72-bit high-speed DDR memory interface delivering faster speeds at 3,200 MT/s and more than 4x increase in RAID5 Random Write IOPs over previous generation adapters. Gain the most flexibility out of your storage controller by direct connecting up to 24 Gen 4.0 NVMe, 24G SAS or SATA devices.

Technical Specifications
Specification Details
Model 9670-24i
Brackets Full height and low profile
Devices Supported SAS/SATA: 240,NVMe: 32
Generation 24 Gb
Host Bus Type PCIe x8 Gen4.0
Connectors 3x8 SFF-8654
Internal Ports 24
I/O Controller SAS4124 ROC
Management Software LSl Storage Authoritly (LSA), StorCLl2 (Command-Line Interace), Hll (UEFl Human Interface infrastructure
MTBF >3,000,000 hours at 40°C
Operating Humidity 5% to 90% Non-condensing
Operating Temperature 0°C to 55°C
OS Support Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu Linux, Cent0s Linux, Debian,Linux,Oracle Enterprise Linux,FreeBSD
Physical Dimensions 6.1279"x4.3759 (155.65mm x 111.15mm)
Typical Power 28W
Packing & Delivery
Broadcom 9670-24i 24G PCIe 4.0 Tri-Mode RAID Adapters and eHBAs 0
Frequently Asked Questions
Are you a trading company or manufacturer?
We are manufacturer.
How long is your delivery time?
Generally it is 2-5 days if the goods are in stock, or it is 10 days if the goods are not in stock, depending on quantity.
Can you offer a better price? Any discount?
Yes we can give you discount, based on quantity. More quantity means more attractive price.
What is your warranty period?
1. Different products have different warranties. 2. Comprehensive after-sales service, including quality service and guidance services. We focus on customer needs in every detail. Please contact us for our detailed warranty terms.
What's the package?
Original packing. For the outside, we will pack it in an empty box to protect from damage during transportation, ensuring you receive the goods in good condition.
