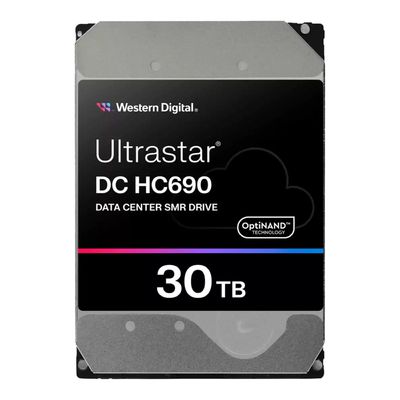

Western Digital Enterprise-Grade Hard Drive 7200 Rpm SATA Interface 512MB Cache
  • name
  • name
  • name

Western Digital Enterprise-Grade Hard Drive 7200 Rpm SATA Interface 512MB Cache

MOQ: 1 piece
Price: $480-700 / piece
Standard Packaging: BOX
Payment Method: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin
Beijing, China
Brand Name
-
Model Number
WSH723200AL4201
Interface Rate:
6Gb/s
Size:
3.5"
Interface Type:
SATA
Speed:
7,200 Rpm
Cache:
512MB
Capacity:
30TB
Weight(including Package):
700g(24.69oz)
Warranty:
5 Years
Highlight:

30TB Capacity HDD

,

2.5M MTBF Hard Disk Drive

,

Error Rate 1 in 10¹⁵ Data Center Hard Drive

Product Description

Western Digital Enterprise-Grade Hard Drive 7200 Rpm SATA Interface 512MB Cache

Highlight
1. 1.11-disk HDD platform
2. Provided capacity up to 32TB (using Shingled Magnetic Recording technology, SMR)
3. Increases storage density without increasing footprint
4. Maintains the high efficiency and reliability of field-proven hardware design
5. Rated workload of 550TB per year, with a mean time between failures (MTBF) of up to 2.5 million hours
Product Specifications
Parameter 30TB SATA
Model Number WSH723200AL4201
Formatted capacity 30TB
Recording Technology SMR
Interface SATA 6 Gb/s
Format: Sector size (bytes) 512e/512
Areal density (Gbits/sq. in.) 1385
Data buffer (MB) 512
Rotational speed (RPM) 7200
Latency average (ms) 4.16
Interface transfer rate (MB/s, max) 600
Sustained transfer rate (MB/s, max) / (MiB/s, max) 260 / 248
Error rate (non-recoverable, bits read) 1 in 10¹⁵
Load/Unload cycles (at 40°C) 600,000
Availability (hrs/day × days/wk) 24×7
MTBF (M hours) 2.5
Annualized Failure Rate 0.35%
Requirement +5 VDC, +12VDC
Random Read 4KB QD=8 @MAX IOPS (W) 9.4
Idle (W) 5.5
Power efficiency at idle (W/TB) 0.18
Idle / Operating (Bels, typical) 2.5 / 3.2
z-height (max) 1.03 in. (26.1 mm)
Length 5.78 in. (146.7 mm)
Width ± .01 in. (max) 4.0 in. (101.6 mm)
Weight (lb/kg , ±10%) 1.47 lb. (6.7 kg) ± 10%
Packing & Delivery
Western Digital Enterprise-Grade Hard Drive 7200 Rpm SATA Interface 512MB Cache 0
