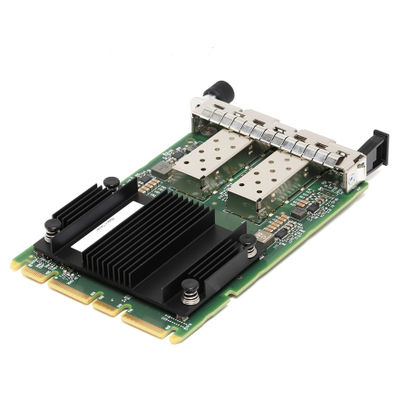

MCX623432AC-GDAB High Performance 100Gbps Network Card with SFP56 Connector

MOQ: 1 pieces
Price: $1,990 -2,300/ piece
Standard Packaging: BOX
Payment Method: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin
Beijing, China
Brand Name
Mellanox
Model Number
MCX623432AC-GDAB
Transmission Rate:
50GbE
Interface Type:
PCIe
Max Speed:
1/10/25/40/50GbE
Connector Type:
SFP56
Ports:
Dual
Warranty:
1 Year
Highlight:

100Gbps Network Card

,

SFP56 Connector Network Card

,

1 Year Warranty Ethernet Adapter Card

Product Description
High Performance 100Gbps Low Latency RDMA RoCE Supported MCX623432AC-GDAB Network Card
PCIe interface server network card with RDMA and RoCE support for high-speed data transfer and low latency applications.
Product Specifications

NVIDIA®CONNECTX® -6 DX is a highly secure and advanced intelligent network interface card (intelligent NIC), which can speed up the transmission of mission-critical data. Core applications, such as security, virtualization, virtualization, SDN/NFV, big data, machine learning and machine learning and storage. It is the most It can provide two ports with 100GB/s or a single port with 200GB/s Ethernet connection and the highest ROI of any SmartNIC. ConnectX-6 DX is powered by leading 50GB/S(PAM4) and 25/10 GB/S(NRZ)Serdes technologies and new features, which can Accelerate cloud and data center payloads.

Model
NVIDIA MCX623432AC-GDAB
Series
ConnectX-6 Dx Series (Ethernet SmartNIC)
Data Rate
100Gb/s per port (Multi-rate support)
Bus Interface
PCIe 4.0 x16
Ports
Dual-port QSFP56 (25/50/100GbE compatible)
Security
IPsec/TLS encryption, Hardware Root of Trust, ASAP2 Firewall
Form Factor
OCP 3.0 Standard (with bracket)
Virtualization
SR-IOV, VirtIO (8 million flow rules support)
Applications
Cloud Computing, AI/ML, Storage Acceleration, Low-Latency Networking
Power
~18W (Typical)
Compatibility
Compatible with major server/switch platforms (e.g., NVIDIA Spectrum)
Certifications
CE, FCC, RoHS
MCX623432AC-GDAB High Performance 100Gbps Network Card with SFP56 Connector 0

Packing & Delivery
MCX623432AC-GDAB High Performance 100Gbps Network Card with SFP56 Connector 1
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. For out-of-stock items, delivery is approximately 10 days depending on quantity.
Q: Can you offer a better price? Any discount?
A: Yes, we offer quantity-based discounts. Larger orders receive more attractive pricing.
Q: What is your warranty period?
A: 1. Different products have different warranties. 2. We provide comprehensive after-sales service including quality service and guidance. Please contact us for specific warranty terms.
Q: What's the package?
A: Original packing with additional protective outer box to ensure safe transportation and delivery in perfect condition.
