HZ1I350F4OCP Gigabit OCP Network Card with Intel MHI350AM4 Controller and SFP Interface
  • name

HZ1I350F4OCP Gigabit OCP Network Card with Intel MHI350AM4 Controller and SFP Interface

MOQ: 1 piece
Price: $500 -700/ piece
Standard Packaging: box
Payment Method: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin
Beijing, China
Brand Name
HengzhengTC
Model Number
HZ1I350F4OCP
Transmission Rate:
1000Mbps
Network Port:
Four Ports
Interface Type:
4*SFP
Interface Type:
OCP
Transmission Rate:
10/100/1000Mbps
Warranty:
3 Years
Highlight:

OCP 2.0 X4 Network Card

,

Intel MHI350AM4 Controller Network Adapter

,

SFP Interface Server Network Card

Product Description
HZ1I350F4OCP Gigabit Four-Port OCP Network Card OCP 2.0 X4
Product Overview

The HZ1I350F4OCP is a high-performance Gigabit OCP network card featuring four SFP ports, designed for enterprise server applications requiring reliable, high-speed network connectivity.

Key Features
  • Quality of service (QoS) integrated in the chip
  • Traffic management
  • Multiple CPU load balancing
  • TCP checksum offload
  • TCP Segmentation/Large Send Unloading
  • Virtual machine device queue (VMDq)
  • PCI-SIG* SR-IOV function support
  • Intelligent unloading
  • Support iSCSI, PXE boot, VLAN convergence
  • PCIe power supply, no external power required
Technical Specifications

The HengzhengTC brand HZ1I350F4 network card is a server-specific Gigabit optical fiber network card developed based on Intel I350AM4 chip. It features four 1000M LC optical fiber interfaces supporting 4000Mbs transmission bandwidth with PCI-E X4 standard slot, ensuring efficient and stable performance. The network card supports VLAN, QOS policy, flow control and other functions, making it ideal for medium and large LAN applications.

Product Model HZ1I350F4OCP
Control Chip Intel MHI350AM4 Ethernet controller
Edition OCP add-in card
Bus Type OCP 2.0 x4
Network Interface 4×SFP
Transmission Rate 10/100/1000Mbps
Bus Rate OCP x4 golden finger
Input Voltage 3.3V_AUX, 12V, 3.3V
Network Standards Compliance
  • IEEE 802.3at-2009 PoE standard
  • IEEE 802.3af-2009 PoE standard
  • IEEE 802.3ab 1000BASE-T Ethernet
  • IEEE 802.3u 100BASE-TX Ethernet
  • IEEE 802.3az - Energy Efficient Ethernet
  • IEEE 802.3z
  • IEEE 802.1Q VLANs
  • IEEE 802.3x
  • IEEE 1588
LED Indicators
  • Link up LED: Yellow when connected, off when disconnected
  • Activity LED: Green (steady when idle, flashing during data transmission)
Operating System Support

Windows, Windows Server, Linux, VMware ESX/ESXi, Ubuntu, CentOS, Red Hat, SUSE Linux Enterprise Server, FreeBSD

Compatibility

Adapted CPU: Shenwei, Feiteng, Kunpeng, Haiguang, Megacore, Godson, Intel, AMD and others. Interface adaptation medium: optical module 4 1GbE SFP

Physical Specifications
Dimensions 115 × 76mm
Support 82.5mm × 15.2mm
Operating Temperature 0°C to 55°C
Operating Humidity 0%-85%, non-condensing
Storage Temperature -10°C to 60°C
Environmental Compliance RoHS-R6 (Lead free process)
Product Images

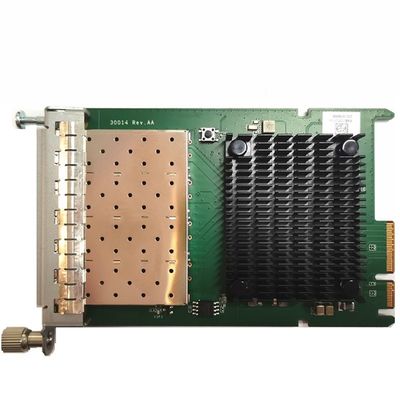

HZ1I350F4OCP Gigabit OCP Network Card with Intel MHI350AM4 Controller and SFP Interface 0

Packing & Delivery
HZ1I350F4OCP Gigabit OCP Network Card with Intel MHI350AM4 Controller and SFP Interface 1
