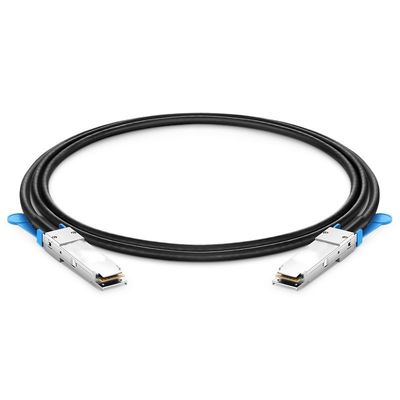

Mellanox MCA1J00-H003E Compatible 200G QSFP56 HDR InfiniBand Active High-speed Cable

MOQ: 1 piece
Price: $191-276 / piece
Standard Packaging: box
Payment Method: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin
Beijing, China
Brand Name
HengzhengTC
Model Number
HZDD200D03
Connector Type:
QSFP56 To QSFP56
Applications:
Infiniband QDR Interconnects
Encapsulation:
QSFP56 To QSFP56
Maximum Transmission Rate:
200Gbps
Minimum Bending Radius:
33mm
Power Consumption:
≤1.5W
Use:
Used For Quantum Switches And ConnectX-6 HCA
Cable Length:
3m (10ft)
Highlight:

200G QSFP56 HDR InfiniBand cable

,

Mellanox compatible high-speed cable

,

Active InfiniBand cable with warranty

Product Description
Mellanox MCA1J00-H003E Compatible 200G QSFP56 HDR InfiniBand Active High-speed Cable
Product Description

The Mellanox MCA1J00-H003E cable is a 200Gb/s QSFP56 to 200Gb/s QSFP56 HDR InfiniBand high-speed cable that uses a four-channel small form-factor pluggable 56 optical module (QSFP56). It includes 4 pairs of high-speed copper cable pairs, each capable of supporting data transfer rates of up to 50Gb/s. This cable complies with OSFP MSA and IEEE 802.3cd standards.

Key Features
  • Meets the requirements of the InfiniBand HDR end-to-end system
  • Low latency, low insertion loss, low crosstalk, high-speed interconnection
  • 4x 50G-PAM4 to 4x 50G-PAM4
  • Comprehensive testing, fully compatible with NVIDIA QM8700 devices
  • Minimum bending radius for flexible wiring is 30mm
  • Simplified wiring and provided an affordable solution for short-distance links
  • Compliant with QSFP56 MSA (Multi-Sourcing Agreement) and IEEE 802.3 standards
encapsulation
QSFP56 to QSFP56
minimum bending radius
33mm
Cable type
Active twisted pair
Commercial temperature range
0~70°C (32~158°F)
Maximum transmission rate
200Gbps
power consumption
≤1.5W
Outer sheath material
PVC (OFNR)
technical protocol
IEEE 802.3cd, SFF-8665, QSFP MSA, SFF-8679, SFF-8636, InfiniBand HDR


Mellanox MCA1J00-H003E Compatible 200G QSFP56 HDR InfiniBand Active High-speed Cable 0
Ordering Information
ORDERABLE PART NUMBER (OPN) DESCRIPTION
HZDD200D03 3m (10ft) Mellanox MCA1J00-H003E compatible 200G QSFP56 HDR InfiniBand active high-speed cable for Quantum switches and ConnectX-6 HCAs
HZDD200D05 5m (16ft) Mellanox MCA1J00-H005E compatible 200G QSFP56 HDR InfiniBand active high-speed cable for Quantum switches and ConnectX-6 HCAs
HZDD200D07 7m (23ft) Mellanox MCA1J00-H007E compatible 200G QSFP56 HDR InfiniBand active high-speed cable for Quantum switches and ConnectX-6 HCAs
Packing & Delivery
Mellanox MCA1J00-H003E Compatible 200G QSFP56 HDR InfiniBand Active High-speed Cable 1 Mellanox MCA1J00-H003E Compatible 200G QSFP56 HDR InfiniBand Active High-speed Cable 2
FAQ
Q: Are you trading company or manufacturer?

A: We are manufacturer.

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock. or it is 10 days if the goods are not in stock, it is according to quantity.

Q: Can you offer a better price? Any discount?

A: Yes we can give you discount. But it is based on quantity. More quantity more attractive price.

Q: What is your warranty period?

A: 1. Different products have different warranties.
2. Comprehensive after-sales service, including quality service, guidance services. We focus on customer needs in every detail. Please contact us if you need our detail warranty term.

Q: What's the package?

A: Original packing. For the outside, we will pack it in an empty box to protect from damaged during transportation, and ensure you will receive the goods in good condition.
