Finisar 100G QSFP28 Optical Transceiver With 850nm Multimode Fiber For 100G Ethernet

MOQ: 1 piece
Price: $70 -100/ piece
Standard Packaging: box
Payment Method: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin
Beijing, China
Brand Name
Finisar
Model Number
FTLC9558REPM-TE
Application:
Data Transimission
Distance:
100 M
Data Rate (max):
103.1 Gb/s
High End Case Temperature (°C):
70
Diagnostics:
Digital
Transmitter:
4x VCSEL
Receiver:
PIN
Voltage Supply:
3.3
Highlight:

100G optical transceiver

,

QSFP28 optical transceiver

,

850nm fiber optic transceiver

Product Description
Finisar 100G QSFP28 Optical Transceiver with 850nm Multimode Fiber for 100G Ethernet and 103.1 Gb/s Data Rate
Product Specifications

FTLC9558REPM 100G QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links over multimode fiber. They are compliant with the QSFP28 MSA and IEEE 802.3bm 100GBASE-SR4 and CAUI-4.

Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA and Application Note AN-2141. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Key Features
  • Supports 103.1Gb/s aggregate bit rate
  • Hot-pluggable QSFP28 form factor
  • Power dissipation <2.5W
  • RoHS compliant
  • Single 3.3V power supply
  • Maximum link length of 100m on OM4 Multimode Fiber (MMF)
  • 4x25Gb/s 850nm VCSEL-based transmitter
  • 4x25G electrical interface
Model
FTLC9558REPM-TE
Manufacturer
Coherent
Type)
Optical Transceiver Module (QSFP28 Form Factor)
Transmission Distance
100m (Multimode Fiber, MMF)
Standard
IEEE 802.3bm 100GBASE-SR4
Wavelength
850nm (4-channel VCSEL Laser)
Fiber Type
Multimode Fiber (OM3/OM4)
Data Rate
25.78Gbps per Channel (Total Bandwidth: 103.1Gbps)
Voltage
3.135V ~ 3.465V (Typical 3.3V)
Power Consumption
≤2.5W (Typical)
Connector
MTP® (MPO) Connector (12-core)
Operating Temp.
0ºC ~ 70ºC
Applications
Data Center Interconnects, Enterprise Network Backbone
Compliance
ROHS3 Compliant

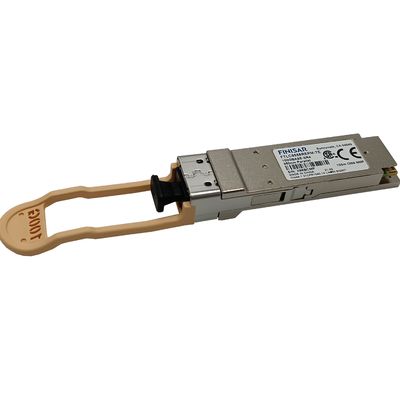

Finisar 100G QSFP28 Optical Transceiver With 850nm Multimode Fiber For 100G Ethernet 0
Packing & Shipping
Finisar 100G QSFP28 Optical Transceiver With 850nm Multimode Fiber For 100G Ethernet 1
Why Choose Us
How can we guarantee quality?
✅ Strict Quality Control Process
What can you buy from us?
  • Brocade FC & Ethernet Switches (e.g., Brocade 6505, 6510, G620)
  • QLogic & Emulex HBAs (e.g., QLogic 2562, Emulex LPe31000)
  • Finisar Optical Transceivers (10G/25G/40G/100G, compatible with Cisco, HPE, etc.)
  • Mellanox InfiniBand & Ethernet Adapters (e.g., ConnectX-3/4/5, 10G/25G/100G)
Why should you buy from us not from other suppliers?
  • ✅ Genuine & Reliable Products
  • ✅ Competitive Pricing
  • ✅ Fast & Secure Shipping
  • ✅ Technical Support
  • ✅ Flexible Solutions
