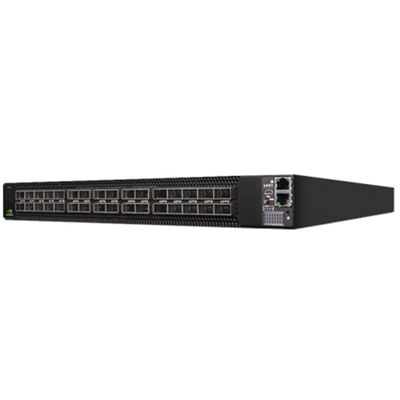

SN3700 Switch 200Gbe 1u Open Ethernet Switch Based On Spectrum-2 32 QSFP56
  • name

SN3700 Switch 200Gbe 1u Open Ethernet Switch Based On Spectrum-2 32 QSFP56

MOQ: 1 piece
Price: $12,000-22,000 / piece
Standard Packaging: box
Payment Method: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin
Beijing, China
Brand Name
NVIDIA
Model Number
SN3700
Ports:
32 QSFP56 Ports
Transmission Rate:
10/100/1000Mbps
Communication Mode:
Full-Duplex & Half-Duplex
Switch Capacity:
6.4Tb/s
Power Supply:
50-60Hz; 100-264V AC
Operating Temperature:
0°c ~ 45°c
Storage Temperature:
-40°c ~ 70°c
Measure:
44mm X 428mm X 559mm
Highlight:

200Gbe sn3700

,

QSFP56 sn3700

,

1u sn3700 switch

Product Description
SN3700 Ethernet Switch with 32 QSFP56 200Gbe Ports and 6.4Tb/s Throughput
The SN3700 Spine/Super Spine switch provides 32 200GbE ports in a compact 1U form factor. It can connect to endpoints at different speeds, and carries a throughput of 6.4Tb/s, with a symbolic processing capacity of 8.33Bpps. As an ideal solution for backbone switch, SN3700 offers higher flexibility, with each port supporting speeds between 10GbE and 200GbE.
Technical Specifications
Interface 32 QSFP56 200GbE (Maximum number of 200GbE ports: 32; Maximum number of 100GbE ports: 64; Maximum number of 50GbE ports: 128; Maximum number of 40GbE ports: 32; Maximum number of 25GbE ports: 128; Maximum number of 10GbE ports: 128; Maximum number of 1GbE ports: 128)
Throughput 6.4Tb/s
Packet forwarding rate 8.33Bpps
Delay 425ns
CPU Quad-core x86
System memory 8GB
SSD memory Frequency: 50-60Hz Input voltage range: 100-264 AC current range: 2.9-4.5A
Packet caching Frequency: 50-60Hz Input voltage range: 100-264 AC current range: 2.9-4.5A
Management ports 1 (100/100)
Serial ports 1 RJ45
USB ports 1
Hot plug power supply 2 (1+1 redundancy)
Hot plug fans 6 (1+1 redundancy)
Reversible airflow option Yes
Power Supply Frequency: 50-60Hz Input voltage range: 100-264 AC current range: 2.9-4.5A
Dimensions 1.72'' x 16.84'' x 22'' (44mm x 428mm x 559mm)
Weight 11.1kg (24.5 lbs)
Ordering Information
Model Number Description
920-9N201-00FA-0X0 200GbE 1U open Ethernet switch based on NVIDIA Spectrum-2 (using Onyx), 32 QSFP56 ports, 2 power supplies (AC), x86 CPU, standard depth, P2C cooling, and guide rail kit.
920-9N201-00RA-0X0 200GbE 1U open Ethernet switch based on NVIDIA Spectrum-2 (using Onyx), 32 QSFP56 ports, 2 power supplies (AC), x86 CPU, standard depth, C2P cooling, and guide rail kit.
920-9N201-00FA-0C0 200GbE 1U open Ethernet switch based on NVIDIA Spectrum-2 (using Cumulus Linux), 32 QSFP56 ports, 2 power supplies (AC), x86 CPU, standard depth, P2C cooling, and guide rail kit.
920-9N201-00RA-0C0 200GbE 1U open Ethernet switch based on NVIDIA Spectrum-2 (using Cumulus Linux), 32 QSFP56 ports, 2 power supplies (AC), x86 CPU, standard depth, C2P cooling, and guide rail kit.
920-9N201-00FA-0N0 200GbE 1U open Ethernet switch based on NVIDIA Spectrum-2 (using ONIE), 32 QSFP56 ports, 2 power supplies (AC), x86 CPU, standard depth, P2C heat dissipation and guide rail kit.
920-9N201-00RA-0N0 200GbE 1U open Ethernet switch based on NVIDIA Spectrum-2 (using ONIE), 32 QSFP56 ports, 2 power supplies (AC), x86 CPU, standard depth, C2P heat dissipation and guide rail kit.
SN3700 Switch 200Gbe 1u Open Ethernet Switch Based On Spectrum-2 32 QSFP56 0
Packing & Delivery
SN3700 Switch 200Gbe 1u Open Ethernet Switch Based On Spectrum-2 32 QSFP56 1
FAQ
Q: Are you a trading company or manufacturer?
A: We are a manufacturer.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock, or 10 days if the goods need to be manufactured, depending on quantity.
Q: Can you offer a better price? Any discount?
A: Yes, we can offer discounts based on quantity. Larger quantities receive more attractive pricing.
Q: What is your warranty period?
A: 1. Different products have different warranties. 2. We provide comprehensive after-sales service, including quality service and guidance services. Please contact us for specific warranty terms.
Q: What's the package?
A: Original packing. For shipping, we use protective outer packaging to ensure goods arrive in perfect condition.
