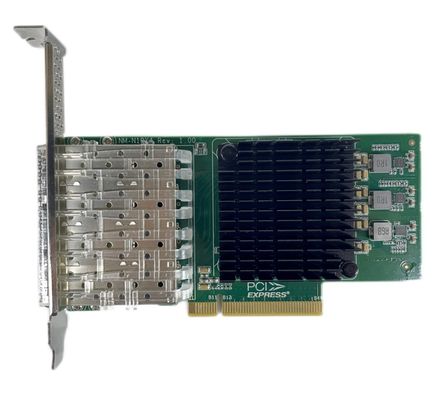

HZ10N10F4 10G 4-Port PCIe Gen3x8 Network Card with 8W Power
  • name
  • name
  • name

HZ10N10F4 10G 4-Port PCIe Gen3x8 Network Card with 8W Power

MOQ: 1 pieces
Price: US $ 155-400 / pieces
Standard Packaging: box
Payment Method: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HengzhengTC
Model Number
HZ10N10F4
Port:
4
Port Rate:
10Gbps
PCIe Bus:
PCIE3.0 X8
Power Consumption (Max):
8W
Working Temperature:
0ºC ~ 70ºC
Quality Assurance:
3 Years
Highlight:

10G PCIe network card

,

4-port PCIe Gen3x8 card

,

8W power network adapter

Product Description
HZ10N10F4 10G Four Ports PCIe Gen3x8 Intelligent Network Card
Product Overview

High-performance intelligent network card featuring domestic N100 Gigabit Intelligent Network Controller with four 10G SFP+ ports, designed for efficient data transmission in demanding network environments.

Technical Specifications
Controller Domestic N100 Gigabit Intelligent Network Controller
Transmission Medium Optical fibre
Optical Fiber Type 10GBASE-SR, 10GBASE-LR, 10GBASE-Cu
1GBASE-SR, 1GBASE-LR, 1GBASE-Cu
Power Consumption (Max) 8W
Port Type 4 10G SFP+ connectors
PCIe Bus PCIE3.0 x8
Port Rate 10Gbps
Power Supply PCIe power supply
Heat Dissipation Passive heat dissipation
Working Temperature 0ºC ~ 70ºC
Working Humidity 10% ~ 90% (without condensation)
Storage Temperature -40ºC ~ 85ºC
Storage Humidity 5% ~ 95% (without condensation)
Compliance Standards
  • IEEE 802.3z Gigabit Ethernet
  • IEEE 802.3x Full Duplex and flow control
  • IEEE 802.1Q VLAN
  • IEEE 802.3ad
  • IEEE 802.3az - Energy Efficient Ethernet (EEE)
  • IEEE 802.1P
  • IEEE 802.3ac
  • IEEE 802.2
Network Characteristics
  • Support RSS with a maximum of 256 queues
  • Support packet unloading, IP/TCP and IP/UDP checksum unloading; TSO/GRO/TCO/RCO support
  • Support packet filtering based on MAC/VLAN/TCP_SYN and quintuple
  • Support packet redirection based on MAC/VLAN/TCP_SYN and quintuple
  • Support flow control mechanism and FC/PFC
  • Support virtual Ethernet bridge (VEB)
  • Support VxLAN/NVRGE
  • Support PXE
  • Support sideband management
  • Support VLAN and QinQ
  • Support IPV4/IPV6
Tags:

network card,

Network Adapters,

network adapter
